Product Description

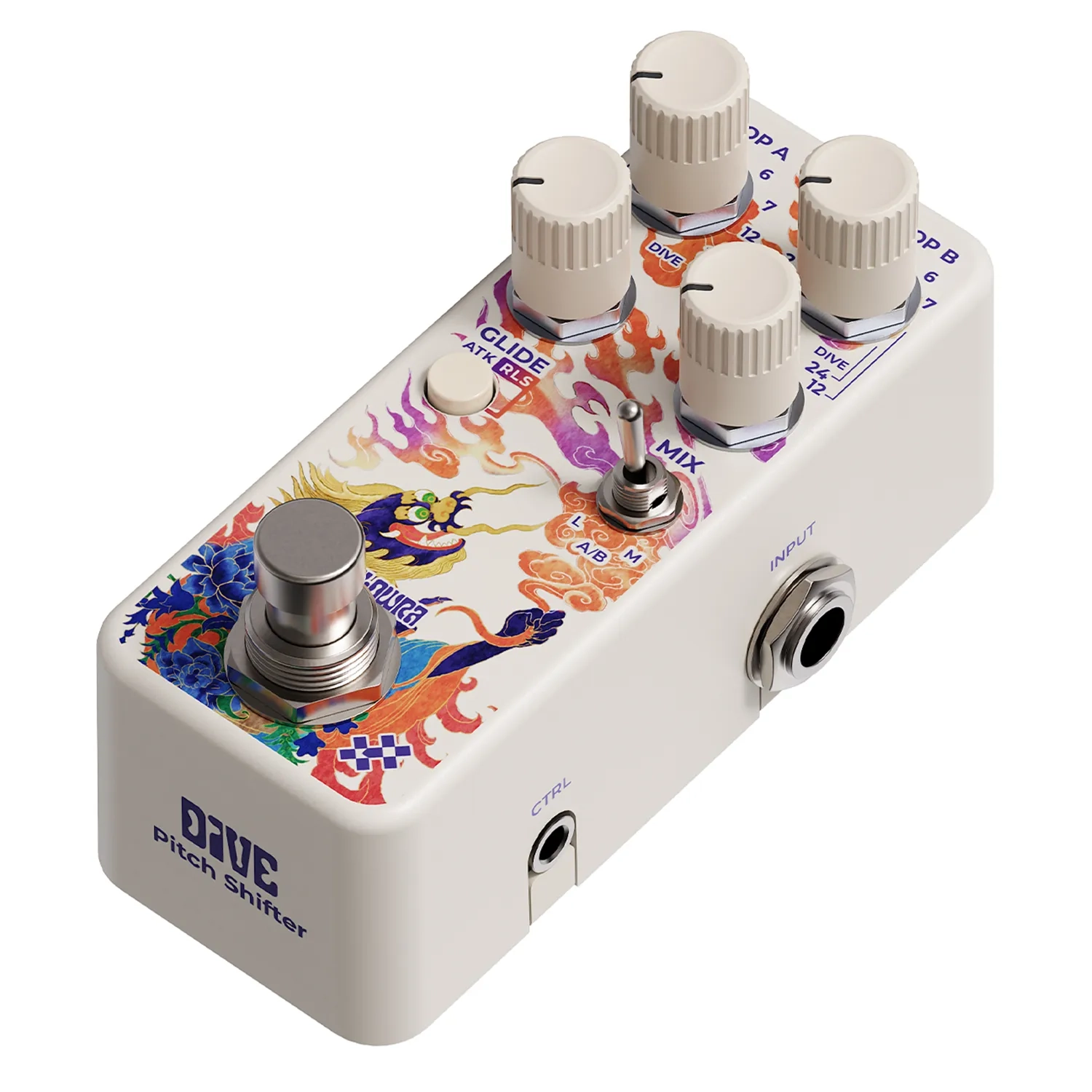

Klowra Dive Polyphonic Pitch Shifter Guitar Effects Pedal

The Klowra Dive is an ultra-compact, high-performance polyphonic pitch shifting pedal built for players who want absolute mastery over their instrument's tuning, register, and dynamic pitch movement. Part of Klowra’s innovative Budding Bloom Mini Series, the Dive incorporates a specialised dual-channel pitch engine that lets you instantly jump between distinct tunings, drop down for crushing riffs, or create smooth, whammy-style pitch bends—all from a pocket-sized enclosure.

Dual-Channel Drop Tuning and Shift Matrix

The core of the Dive is anchored by its flexible dual-knob architecture, featuring completely independent DROP A and DROP B selection dials. Rather than limiting you to standard steps, each dial lets you select precise intervals: 1 through 7 semitones down, an octave down (12), two octaves down (24), a unison mode (UNI), or an aggressive dive bomb setting (DIVE). A heavy-duty three-way routing toggle switch (L/M/A/B) lets you instantly alternate between these two customised presets or blend them for massive, multi-layered polyphonic walls of sound.

Smooth Dynamic Glide Parameter Ramping

To elevate your performance past abrupt, clinical digital interval changes, the Dive features an integrated GLIDE parameter engine. Adjusted via a dedicated push-button switch that toggles between attack (ATK) and release (RLS) envelope times, this circuitry lets your pitch transitions breathe. You can configure the pitch to gradually slide up or plunge over a user-defined rate, mimicking the expressive tension of a physical whammy bar or a mechanical Floyd Rose tremolo system with perfect fluid tracking.

Polyphonic Tracking Clarity and Mix Control

Engineered to maintain pristine definition across complex jazz chords and lightning-fast metal tracking alike, the Dive avoids the glitchy artefacts of vintage pitch shifters. The highly responsive MIX knob gives you comprehensive control over the balance between your natural dry guitar signal and the shifted layer. Keep it entirely wet for authentic drop-tuned rhythm playing, or blend it 50/50 with the unison or octave settings to dial in shimmering 12-string texturing, organ leads, or detuned chorus-like widening.

Studio-Grade Processing Headroom and External Hookups

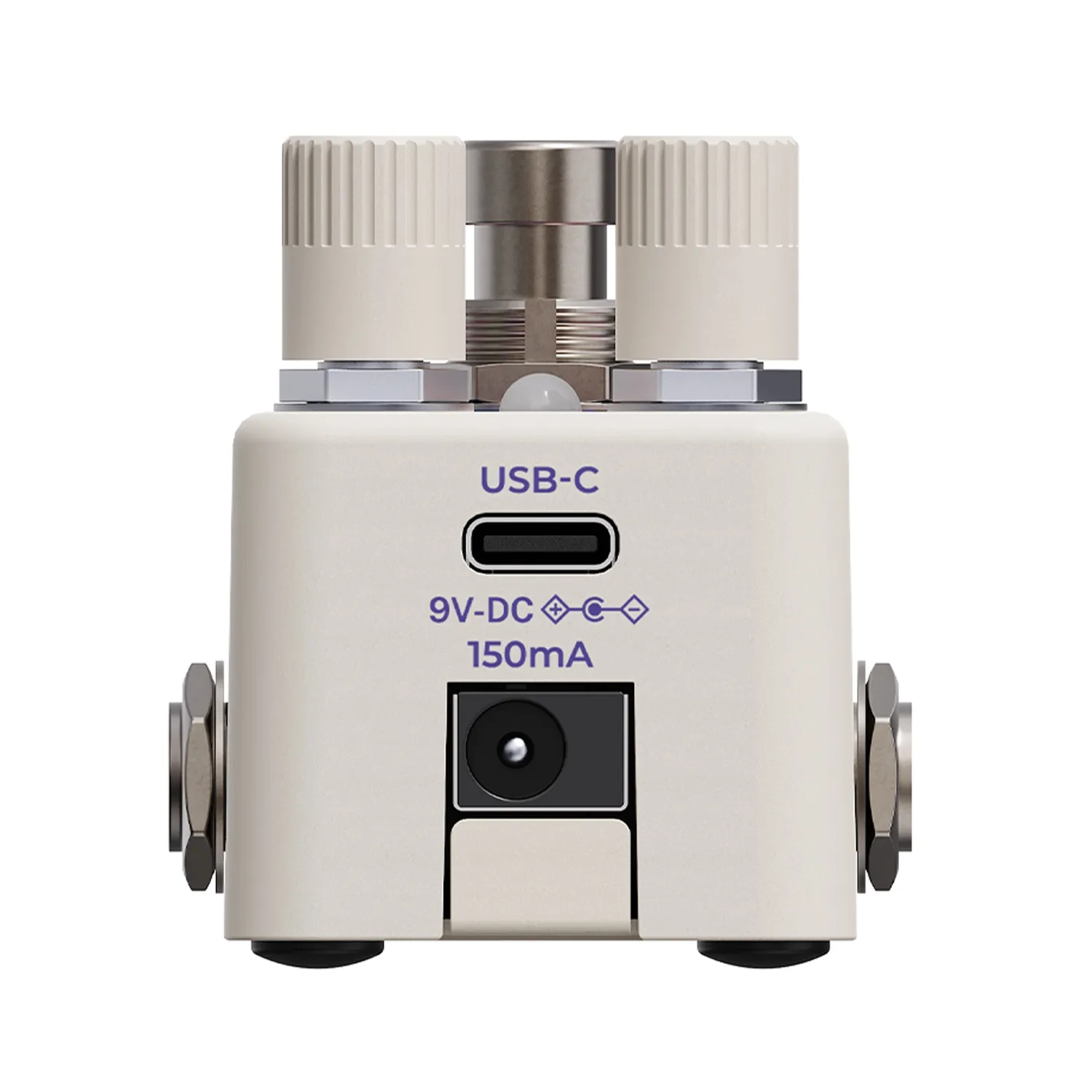

Powered by Klowra's studio-grade WildSeed Engine, the Dive boasts 24-bit AD/DA conversion and a 32-bit floating-point DSP architecture for immense dynamic range and zero signal degradation. The main footswitch can be configured for either Momentary or Latched operation, making it just as effortless to activate quick pitch accents during a solo as it is to leave the pedal engaged for a full song. Complete with switchable True or Buffered Bypass, a dedicated CTRL input jack for remote tracking control, and a USB-C port for ongoing firmware optimisations, the Dive is the ultimate utility for the modern pedalboard.

The Tech Features

Brand: Klowra
Model: Dive Pitch Shifter (Budding Bloom Mini Series)
Bypass: Switchable: True Bypass, Buffered Bypass
Input Impedance: 500k Ohm
Output Impedance: 100 Ohm

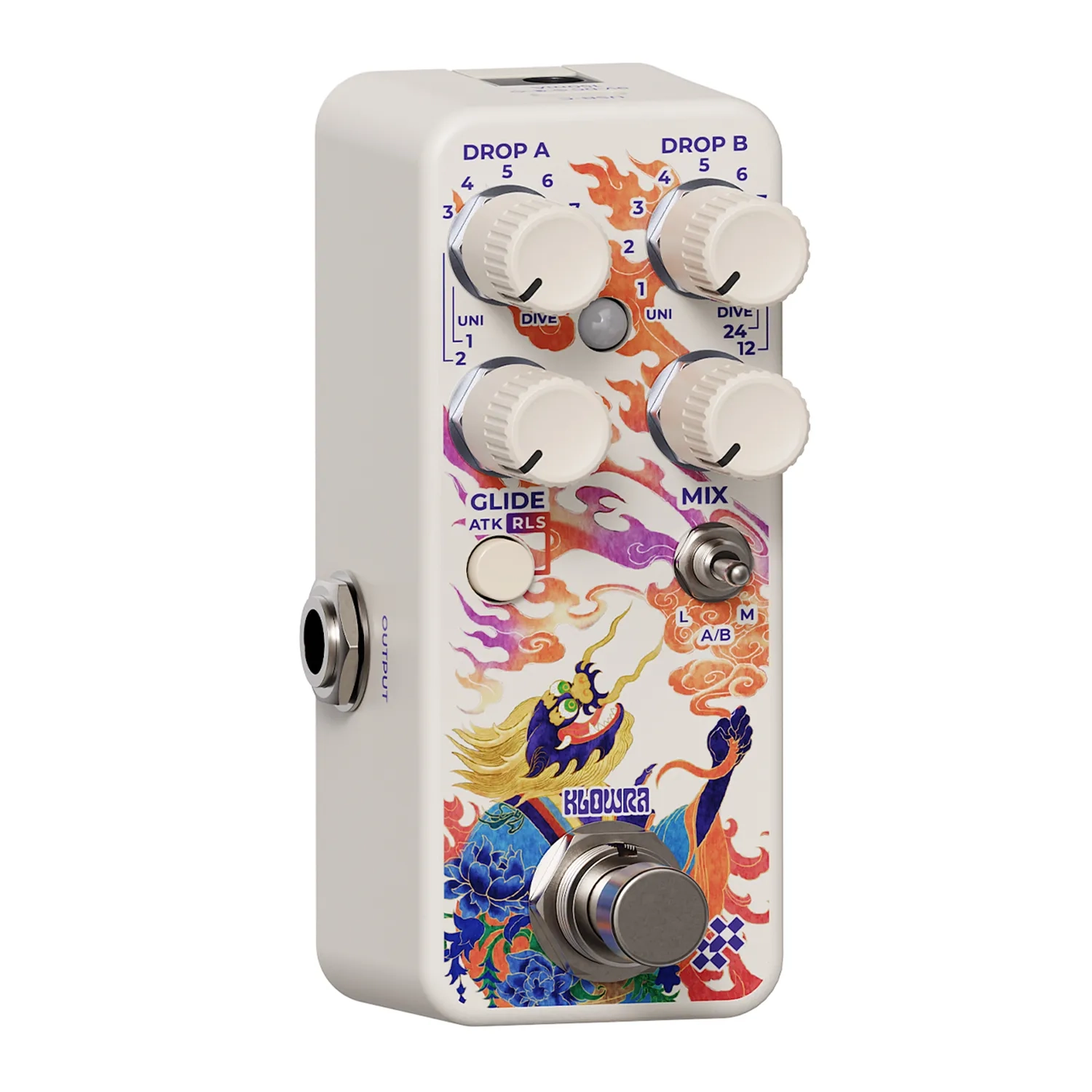

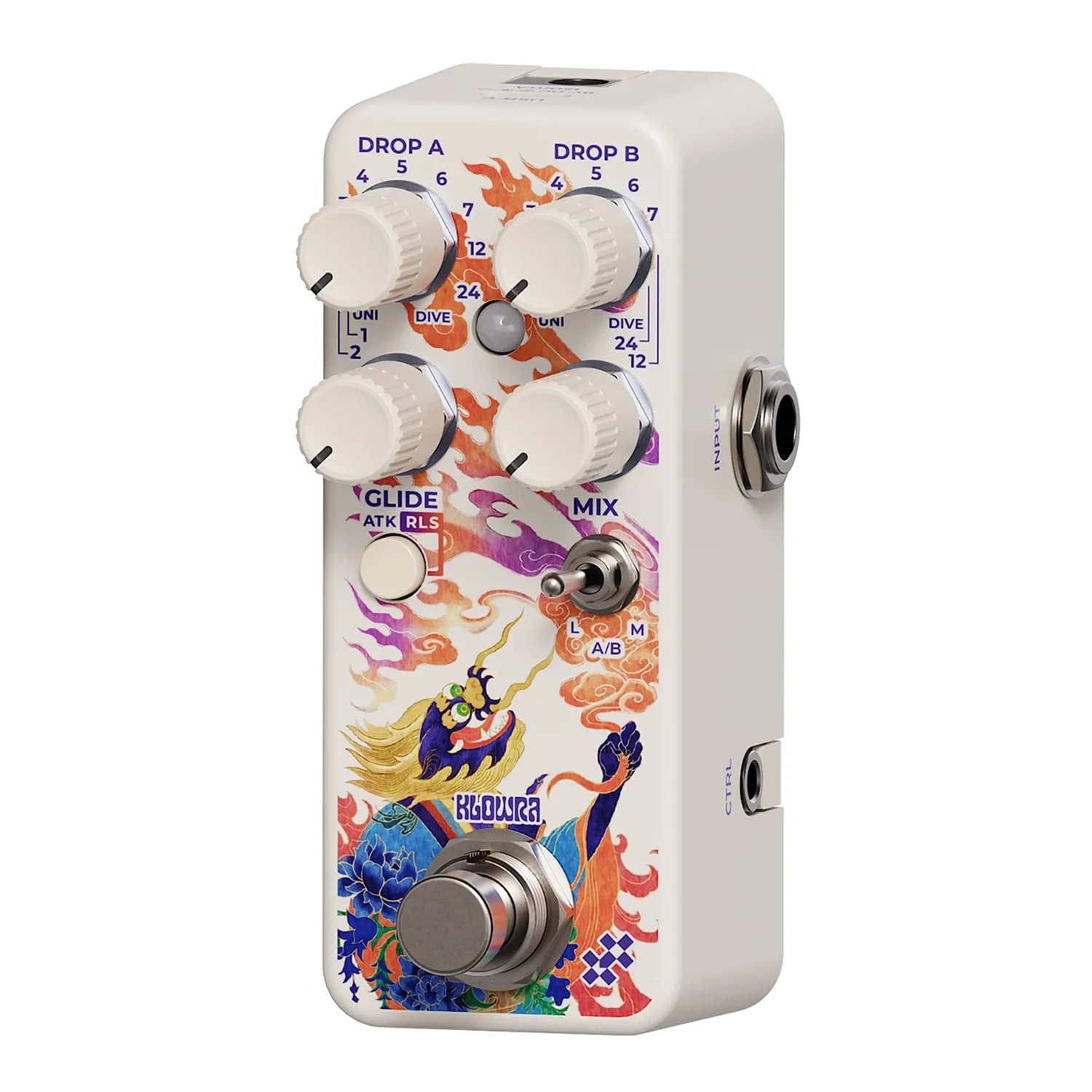

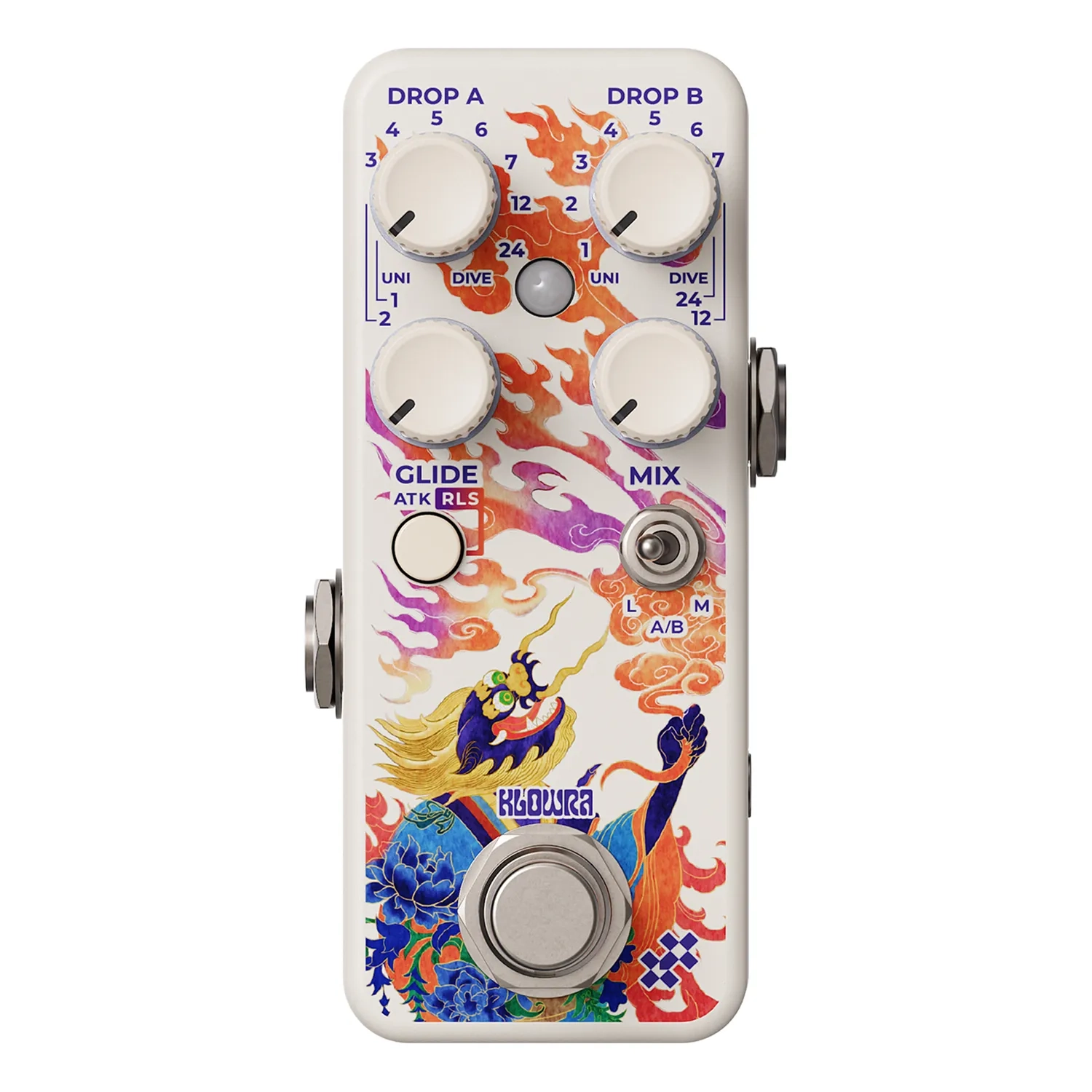

Controls: DROP A Dial, DROP B Dial, GLIDE Knob (with ATK/RLS push switch), MIX Knob, Three-Way Toggle Switch (L / M / A/B), Main Footswitch
Power Consumption: 150mA
Power: 9V DC Centre Negative (Not Included)
Dimensions: 38.0mm H x 92.0mm D x 51.0mm W (1.5"H x 3.6"D x 1.65"W)
