Product Description

About this Ex Demo Belcat ABS520 Guitar A-B Box Pedal,

This pedal is in good working condition.

We have checked it and think it's in pretty good condition, but this has been a showroom demo and most likely used so there is the possibility of small marks or scratches that we haven't seen. This item is covered under warranty but is not eligible for change of mind returns, unless it's significantly not as described.

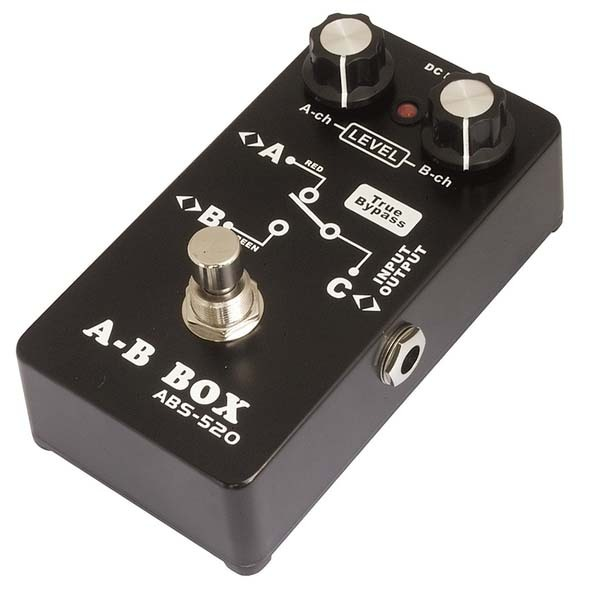

Artist ABS520 Guitar A-B Box Pedal

Pulling out the lead from your guitar while your amp is on to change guitars creates that horrible "popping" sound. use this sweet little box, hook up both guitars, one switch, and you'll never need to worry about popping again. And remember, all our pedals our hard metal, Made for the stage!. This can be used for 2 guitars into 1 amp, or 1 guitar into 2 amps (and lot of other combinations) . Please note this is not an ABY pedal so you can't run both amps at the one time.

The ABS520 is an passive pedal so it can be used in 2 different directions (you can have 2 inputs or 2 outputs) it has volume controls but these are passive and just reduce the volume (if you turn them down).

We also have 2 active versions, the active version allows you to boost the signal (great for lead solo's) but can only be used in 1 direction (we have 2 different models)

(Power supply not included)

The Tech Features

Model: ABS520

Features: Passive A-B Box, can be used as "2 inputs to 1 output" or "1 input to 2 outputs"

Case: Metal

Input Impedance: 1Mohm

Output Impedance: less than 1Kohm

Connectors: Input jack,Output jack,DC Input

Controls: A-Ch Level, B-Ch Level

Bypass: True

Dimensions: W 110mm*H 60mm*D 53mm - (4.3" X 2.4" X 2.1")

Weight: 225g

Power Consumption: 1Mah

Power Supply: 9V Battery or DC 9V ADAPTER (not included)

(8002978)
