Pickups in Artist Guitars

Looking for the exact technical specifications of your Artist Guitars pickups? We use a diverse range of single-coil, P90, and humbucker pickups across our electric guitar line-up to deliver highly versatile tonal options.

Whether you are planning a pickup swap, upgrading your guitar's tone, or simply need to check the output readings, inductance, and magnet types installed in your current model, this comprehensive pickup guide has you covered.

Note: Due to the nature of guitar electronics, every pickup will vary slightly, making all listed output readings and specifications close approximations.

Learn more about pickup applications:
What is a Coil-Splitting pickup and how does it work?

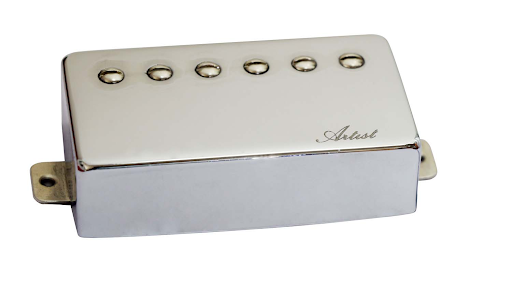

Artist Bullbucker Humbucker

Type Humbucker with Coil-Splitting
Magnets AlNiCo V bar
Output (Neck) 7.1K, 3.8H inductance
Output (Bridge) 15.4K, 9.6H inductance
Found In 58DLX, 58TRM, AT54, AT69L, AP59, AS88, Cherry12, AT69, AMS6, AP97, AP97BB, AS62III, AT92, AT93V2, AP59, Solaris, Solaris II, SS87
Product Code BULLBUCKERNC (Neck), BULLBUCKERBC (Bridge)

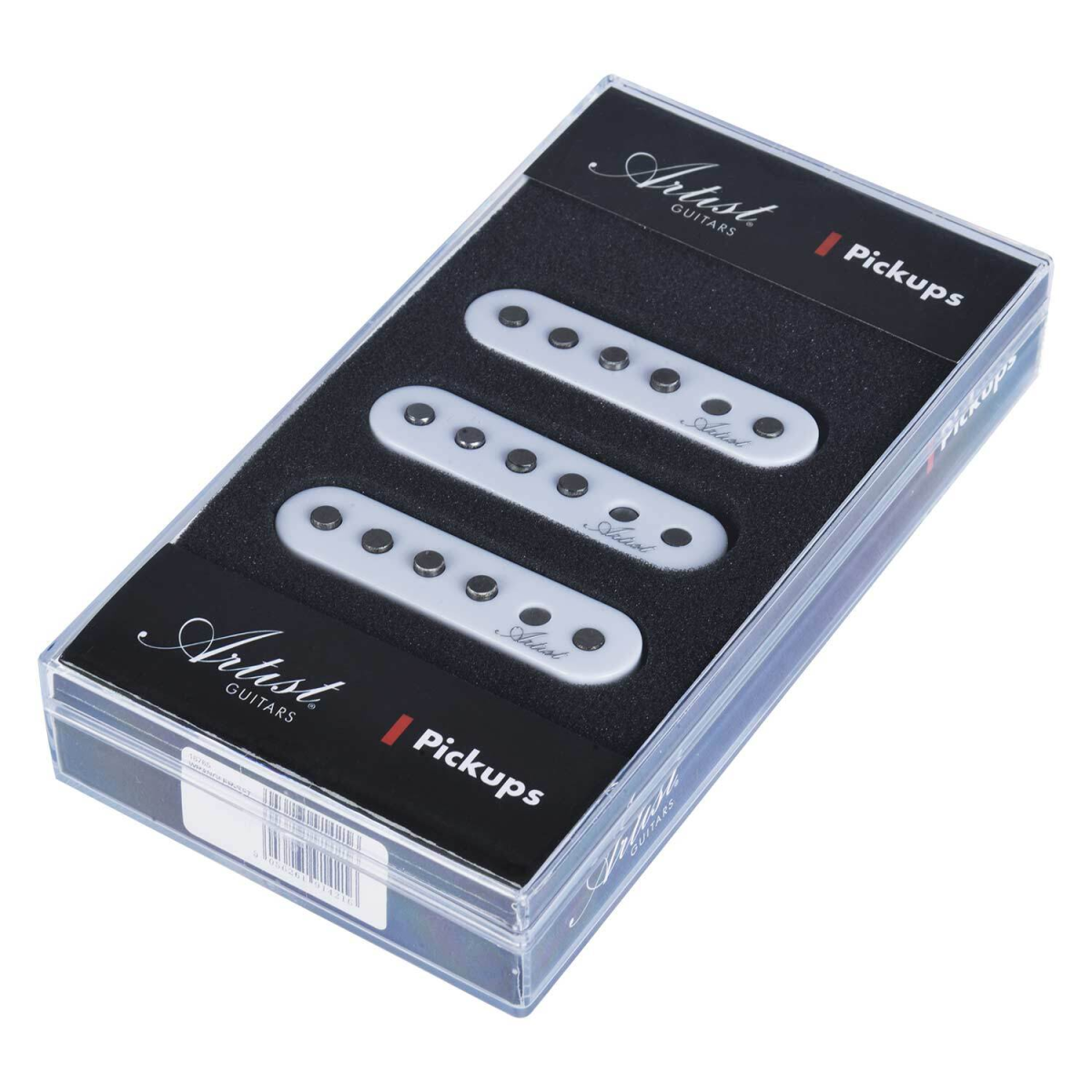

Artist Wrangler Single Coil

Type Single Coil
Magnets AlNiCo V rod
Output (Neck/Mid) 6.4K, 3.0H inductance
Output (Bridge) 7.2K, 3.7H inductance
Found In ST62 (White, Fiesta Red), STMVG, ST62II, AS88, SS87
Product Code VSA-N (Neck), VSA-M (Middle), VSA-B (Bridge)

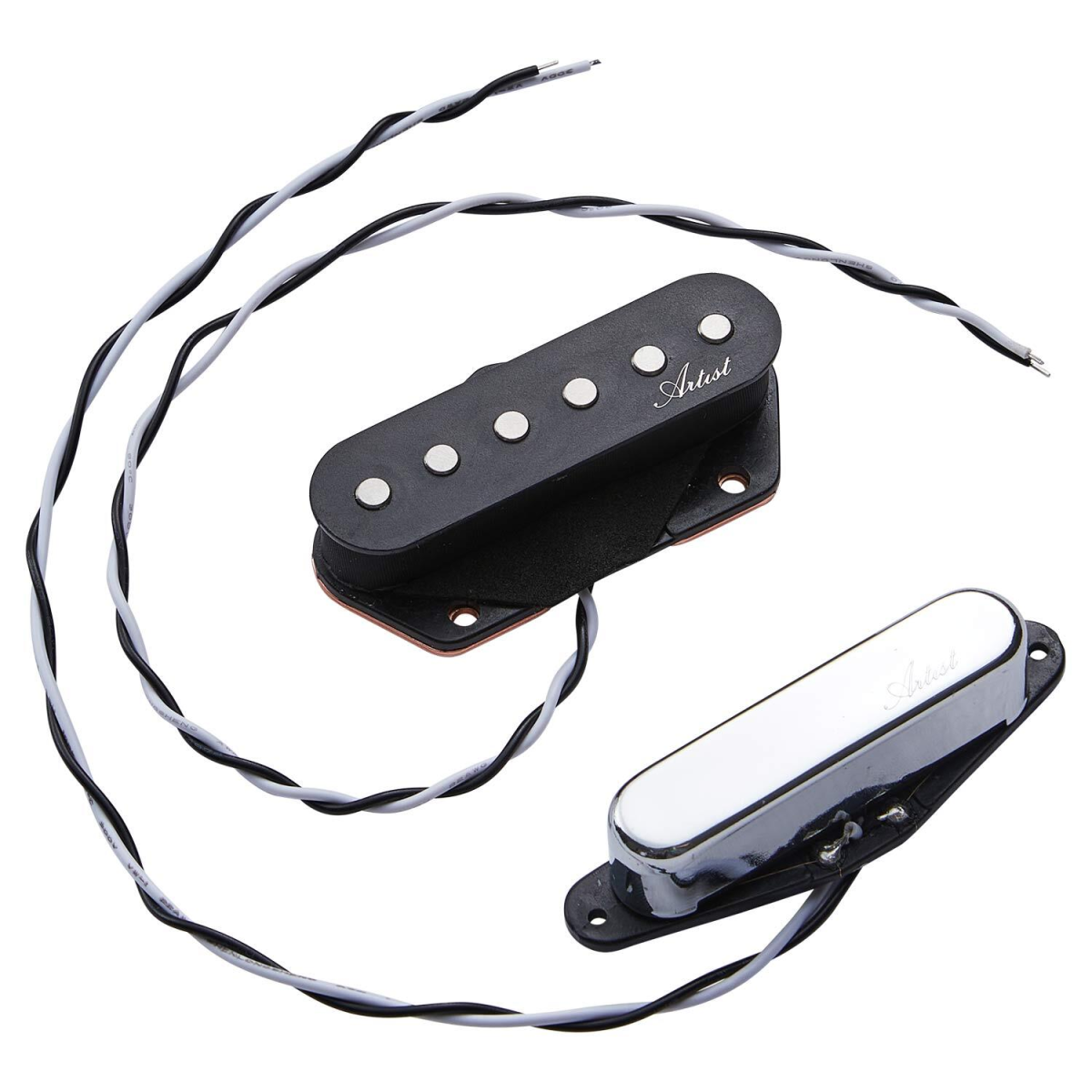

Artist Twangler Single Coil

Type Single Coil
Magnets AlNiCo V Rod
Output (Neck) 12K
Output (Bridge) 16K
Found In AT91V2, AT93V2
Product Code TWANGLERS

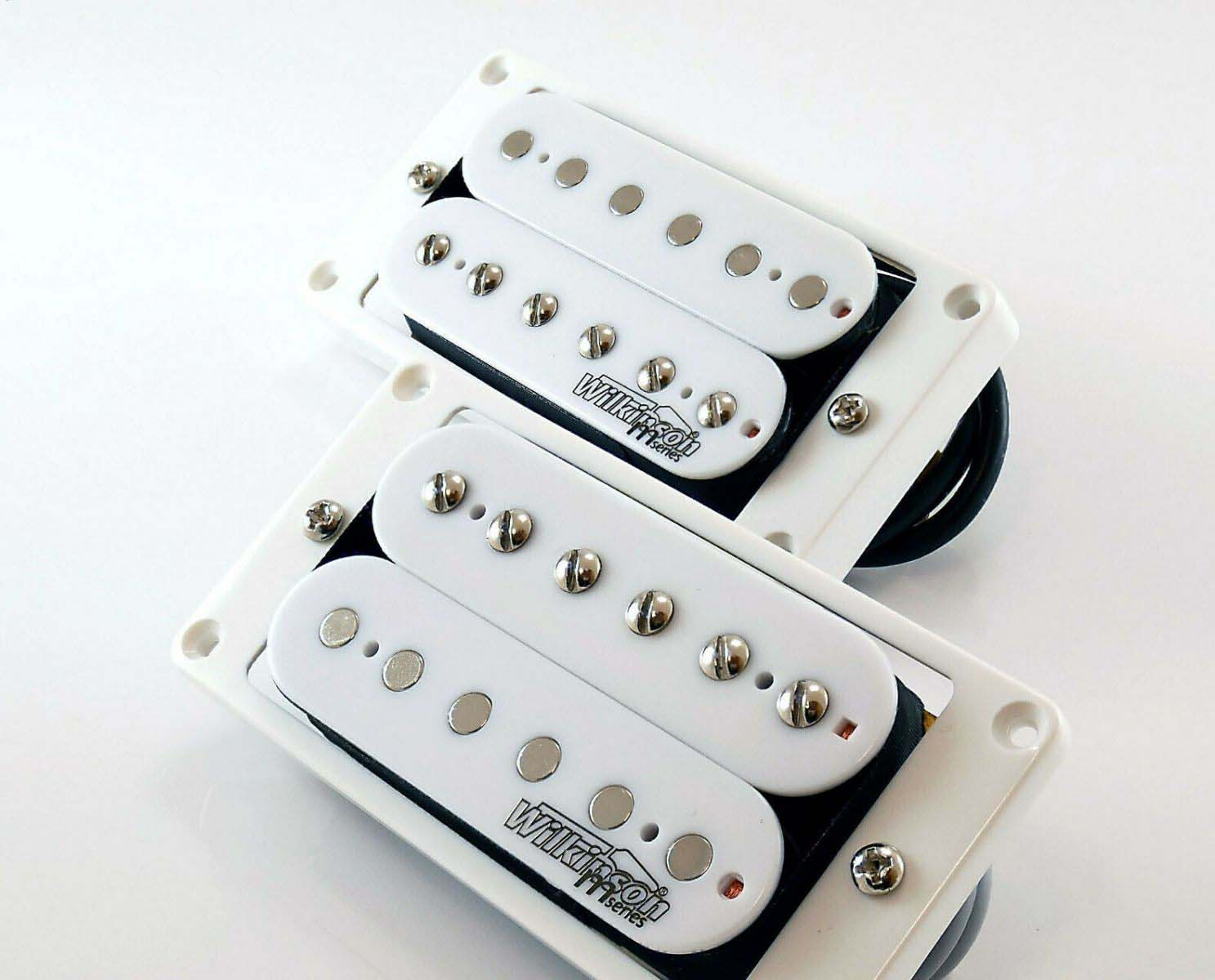

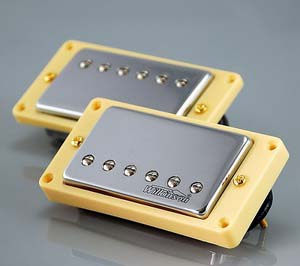

Wilkinson MWCHB "Hot" Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) 7.1K
Output (Bridge) 13K
Found In AP1
Product Code MWCHBN (Neck), MWCHBB (Bridge)

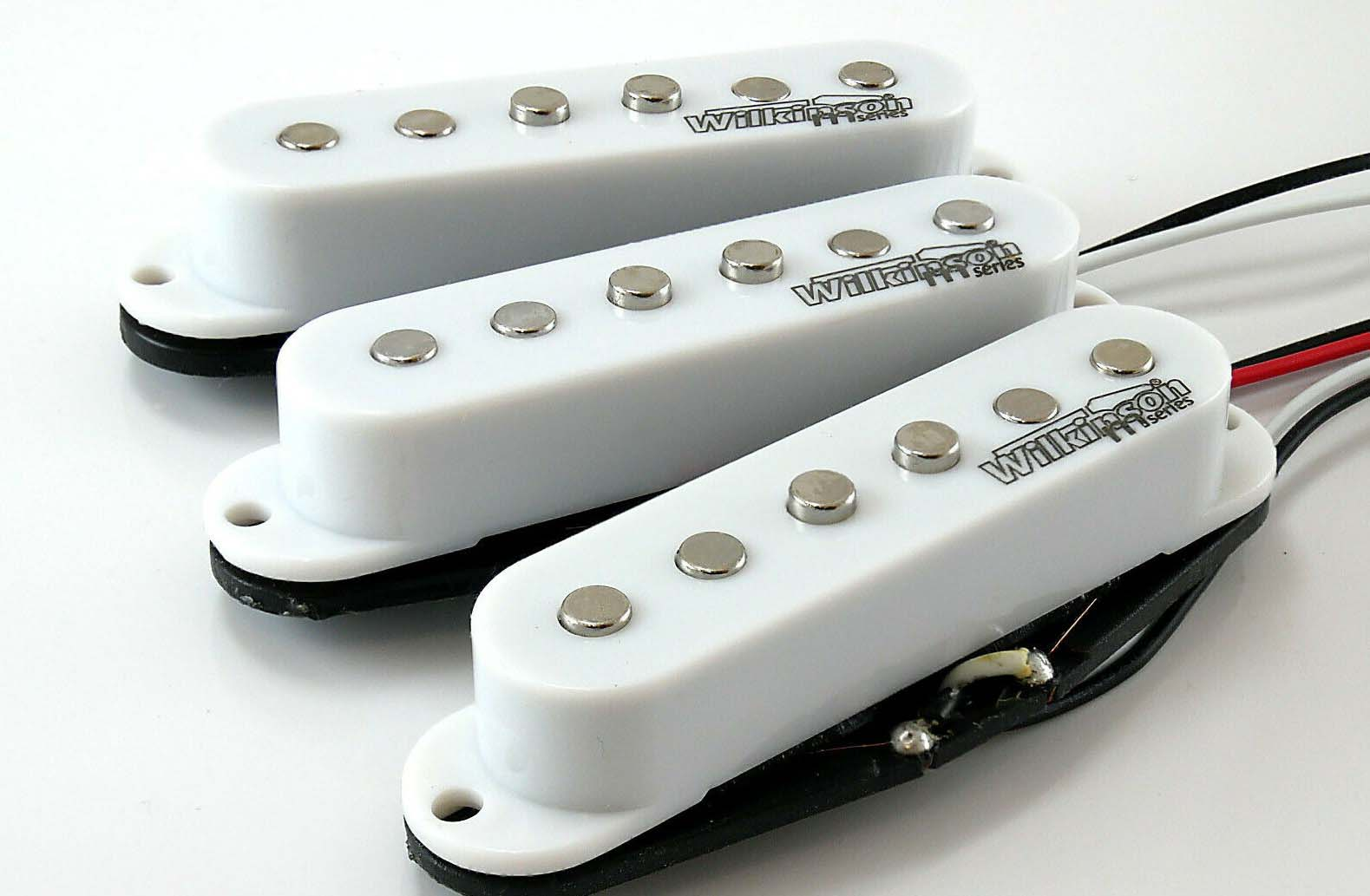

Wilkinson WOVS Single Coil

Type Single Coil
Magnets Ceramic
Output (Neck/Mid) 5.8K
Output (Bridge) N/A
Found In AS1
Product Code WOVS-N (Neck), WOVS-M (Middle)

Wilkinson WOHHB Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) 14K
Output (Bridge) N/A
Found In AS1
Product Code WOHHB-B (Bridge)

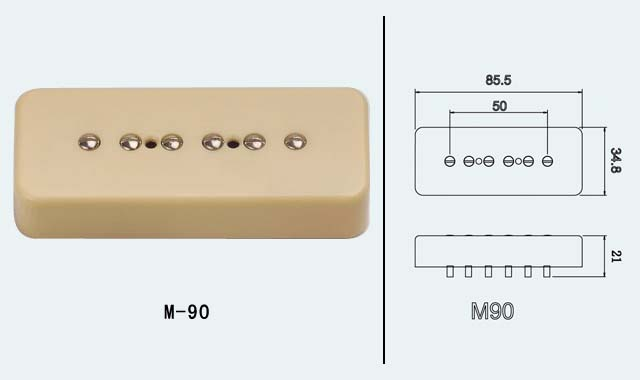

M-90 P90 Pickup

Type P90
Magnets Ceramic
Output (Neck) 7.8K, 5.2H inductance
Output (Bridge) 9.2K, 6.2H inductance
Found In GM1
Product Code M-90N (Neck), M-90B (Bridge)

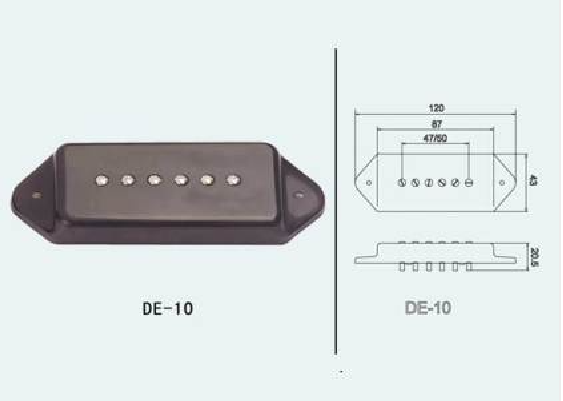

DE-10 P90 Pickup

Type P90
Magnets AlNiCo II
Output (Neck) N/A
Output (Bridge) 9.2K, 6.2H inductance
Found In AP58J, AP54J
Product Code DE-10

Stacked P90 Pickup

Type Stacked P90
Magnets Ceramic
Output (Neck) 10K, 7.0H Inductance
Output (Bridge) 16K, 7.6H Inductance
Found In AP59GT90, AT69
Product Code M-90SKN (Neck), M-90SKB (Bridge)

PHS Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) 7.2K, 3.8H inductance
Output (Bridge) 16K, 9.6H inductance
Found In Gnosis6
Product Code PHS-N (Neck), PHS-B (Bridge)

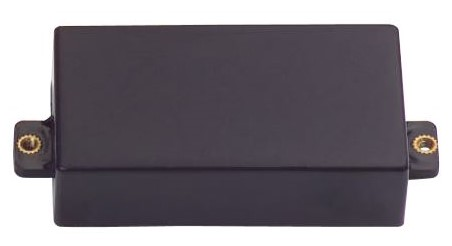

HE-P Active Pickup

Type Active Humbucker
Magnets Ceramic
Output (Neck) 11K, 7.8H inductance
Output (Bridge) 11K, 7.8H inductance
Found In AP6 Stealth, AP6G Cimmerian
Product Code HE-P

VLPA Humbucker

Type Humbucker
Magnets AlNiCo V
Output (Neck) 7.2K, 4.2H inductance
Output (Bridge) 8.2K, 5H inductance
Found In Cherry58, Black58, Brownburst58, Walnut58
Product Code VLPA N (Neck), VLPA B (Bridge)

Ninghong PA04 B Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) N/A
Output (Bridge) 15.3K, 6.85H inductance
Found In EB2
Product Code PA04 B

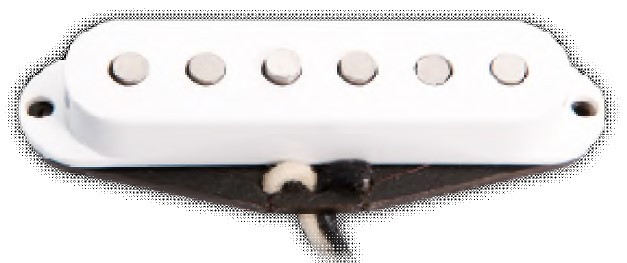

Ninghong HA-01 Single Coil

Type Single Coil
Magnets Ceramic
Output (Neck) 5.84K, 2.2H inductance
Output (Bridge) 5.84K, 2.2H inductance
Found In MINIG, MINIGL, ASDIY
Product Code HA-01

Ninghong PE-02 LP Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) 7.93K, 3.81H inductance
Output (Bridge) 8.48K, 3.98 inductance
Found In AG1, APDIY, ATDIY
Product Code PE-02 N (Neck), PE-02 B (Bridge)

Ninghong PA03 Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) 15.05K, 6.8H inductance
Output (Bridge) 15.3K, 6.85H inductance
Found In SS45
Product Code PA03 N (Neck), PA03 B (Bridge)

Ninghong HB01 Single Coil

Type Single Coil
Magnets Ceramic
Output (Neck) 5.81K, 2.2H inductance
Output (Bridge) 5.81K, 2.2H inductance
Found In SS45
Product Code HB01

Starbow HS620 Humbucker

Type Humbucker
Magnets AlNiCo V
Output (Neck) 9.2K
Output (Bridge) 16.2K
Found In Apricus6
Product Code HS620 N, HS620 B

Artist HMA Active Matte Humbucker

Type Humbucker
Magnets AlNiCo V
Output (Neck) 49K
Output (Bridge) 49K
Found In Cimmerian
Product Code N/A

Ninghong PC01 7-String

Type Humbucker
Magnets Ceramic
Output (Neck) 15K, 6.65H inductance
Output (Bridge) 17.5K, 8.35H inductance
Found In Spiritus7
Product Code PC01 N (Neck), PC01 B (Bridge)

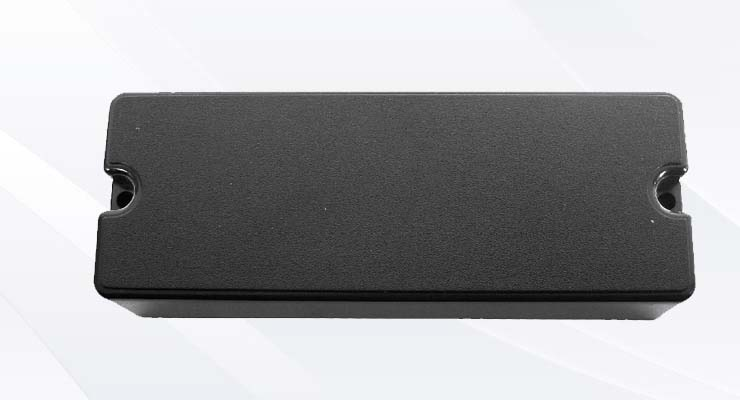

Xinqi 5JH08 Passive 8-String

Type Soap Bar Humbucker
Magnets Ceramic
Output (Neck) 15.5K, 5.0H inductance
Output (Bridge) 15.5K, 5.0H inductance
Found In Indominus8, AG78V2
Product Code 5JH08

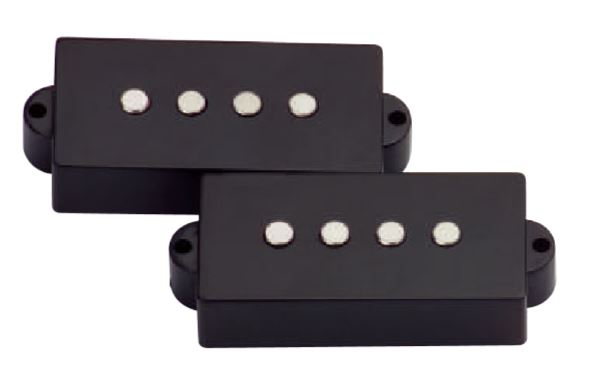

PBAO P Active Pickup

Type Split Single Coil
Magnets AlNiCo V Rod
Output (Neck) 8.5K, 3.2H inductance
Output (Bridge) N/A
Found In All VHYB
Product Code PBAO

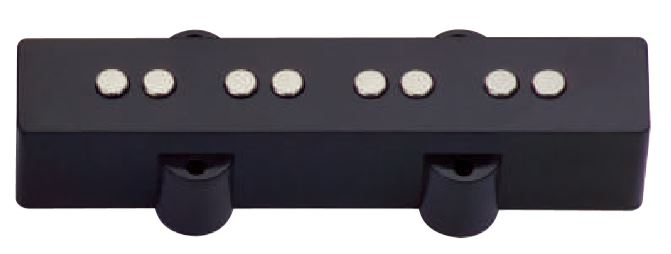

JBAO J Active Pickup

Type Single Coil
Magnets AlNiCo V Rod
Output (Neck) N/A
Output (Bridge) 8.4K, 6.8H inductance
Found In All VHYB
Product Code JBAO-B

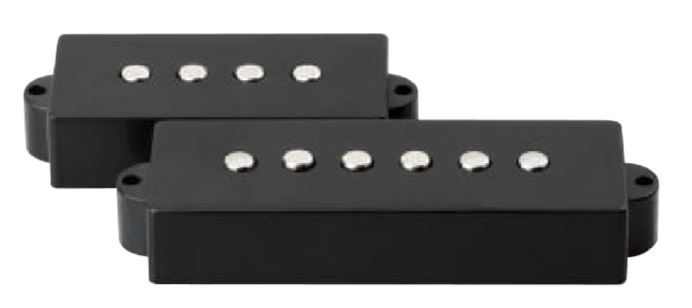

PBAO5 5-String P-Bass Style Active Pickup

PBAO5 5-String P Style Active

Type Split Single Coil
Magnets AlNiCo V Rod
Output (Neck) 8.8K, 3.8H inductance
Output (Bridge) N/A
Found In VHYB5
Product Code PBA05

JBAO5 5-String J Active Pickup

Type Single Coil
Magnets AlNiCo V Rod
Output (Neck) N/A
Output (Bridge) 8.8K, 7H inductance
Found In VHYB5
Product Code JBAO5-B

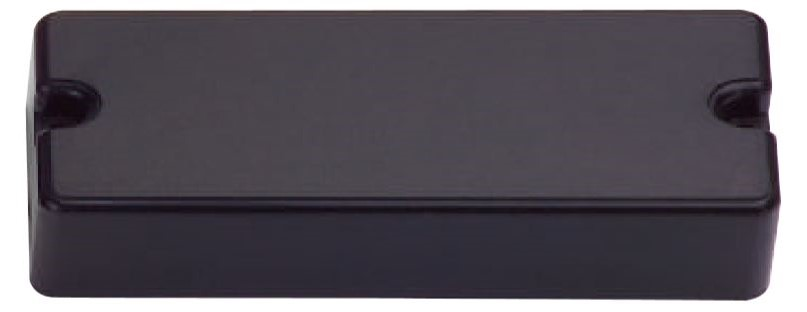

JBH4 Active Bass Pickup

Type Soap Bar Epoxy-Sealed
Magnets Ceramic
Output (Neck) 14.2K, 4.3H inductance
Output (Bridge) 14.2K, 4.3H inductance
Found In ABA200
Product Code JBH4-Active

Ninghong QA03 & QA05

Type Single Coil
Magnets Ceramic
Output (Neck) 6.24K, 4.46H inductance
Output (Bridge) 6.58K, 4.5H inductance
Found In AJB
Product Code QA03 (Neck), QA05 (Bridge)

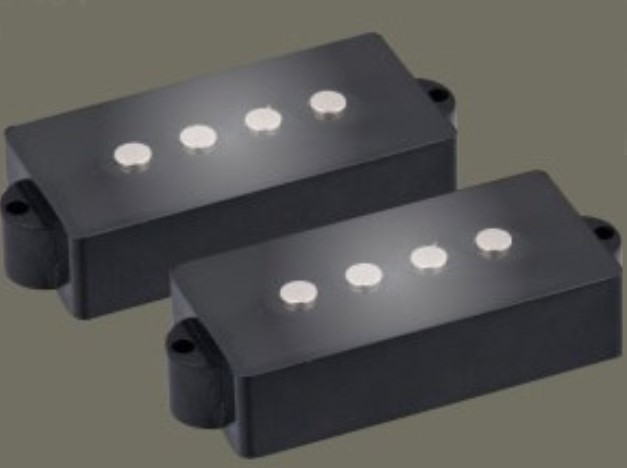

Ninghong QA01 Pickup

Type Split Single Coil
Magnets Ceramic
Output (Neck) N/A
Output (Bridge) 10.74K, 6.7H inductance
Found In APB, APBL, MINIB
Product Code QA01

Laohao Covered Single Coil

Type Covered Single Coil
Magnets AlNiCo V
Output (Neck) 9.71K
Output (Bridge) N/A
Found In AT53, AT82
Product Code N/A

Laohao Black Single Coil

Type Single Coil
Magnets AlNiCo V
Output (Neck) N/A
Output (Bridge) 11.87K
Found In AT53, AT82
Product Code N/A

Laohao Uncovered Humbucker

Type Humbucker
Magnets Ceramic
Output (Neck) 16K
Output (Bridge) 18K
Found In SKYLER, SKYLER Paisley
Product Code N/A

Laohao White Single Coil

Type Single Coil
Magnets AlNiCo V
Output (Neck) 6K
Output (Bridge) N/A
Found In AS72, SK72
Product Code N/A

Laohao Covered Humbucker

Type Humbucker
Magnets AlNiCo V
Output (Neck) N/A
Output (Bridge) 13.5K
Found In AS72, SK72
Product Code N/A

Laohao Modric Humbucker

Type Humbucker
Magnets AlNiCo V
Output (Neck) 8.2K
Output (Bridge) 9.4K
Found In MODRIC
Product Code N/A

Belcat Bass Humbucker

Type Active Humbucker
Magnets Ceramic
Output (Neck) N/A
Output (Bridge) N/A
Found In AMB4
Product Code N/A

Artist Howler P90

Type P90
Magnets Ceramic
Output (Neck) Stacked: 14.7K
Output (Bridge) Stacked: 19.4K | Single: 8.8K
Found In AT69, AP54J
Product Code N/A

Looking for a pickup not on this list?

No problem! Just send an email to our support team and we'll be happy to find the information and get it added.
